REDARC Towpro Elite V3 – Supplied & Installed

REDARC Towpro Elite V3 – Supplied & Installed

THIS IS A SUPPLIED AND INSTALLED PRICE.

PROFESSIONAL QUALIFIED AUTO ELECTRICAL INSTALLATION IS CONDUCTED AT OUR VAN RV ROSEBUD, VICTORIA ONLY.

VIA APPOINTMENT – See below

Step 1. Purchase item on-line

Step 2. Phone 1300 068 700 during business hours, using option 2 to make your installation appointment.

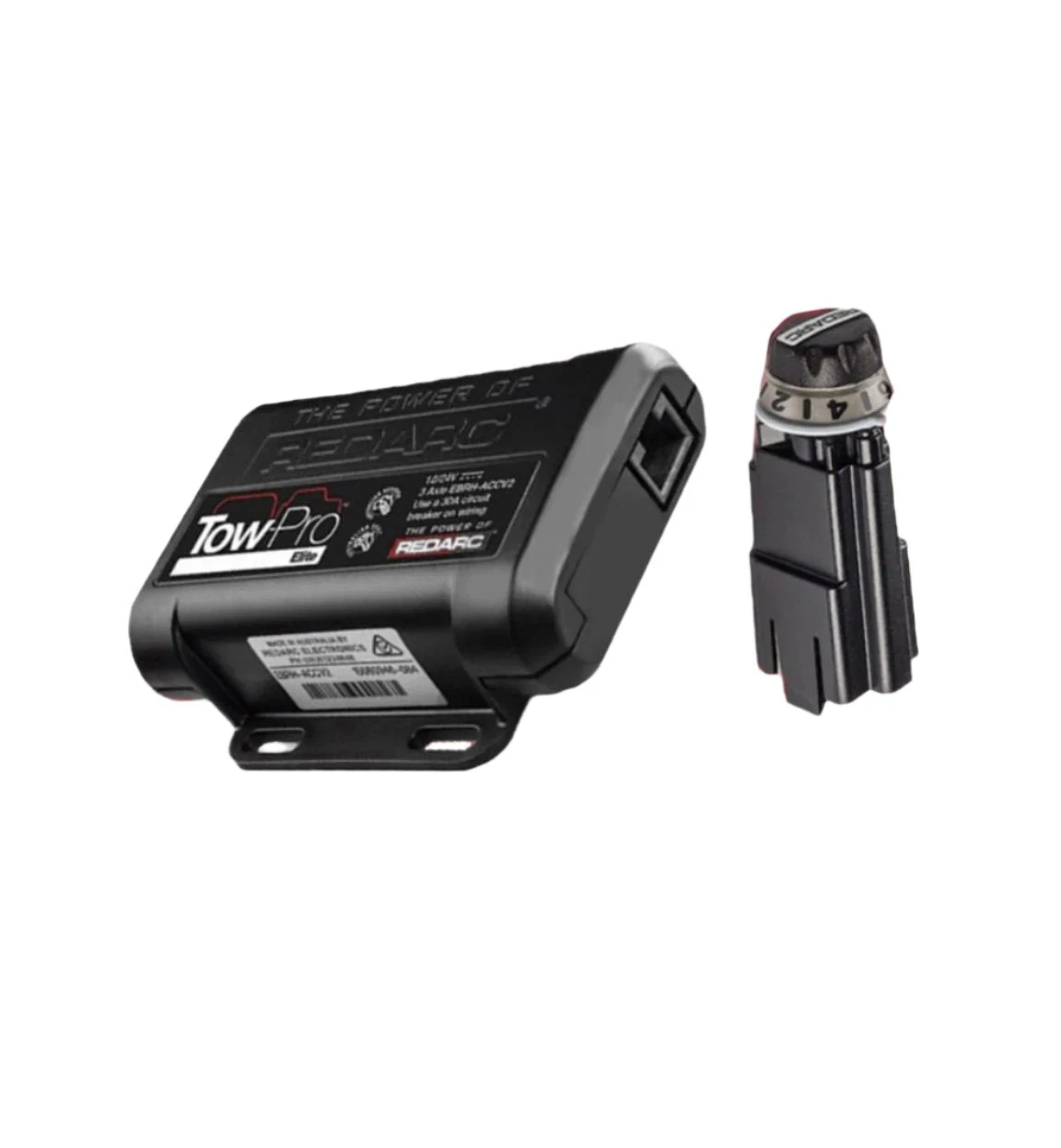

REDARC continues to set the benchmark in trailer brake control technology which has seen the Tow-Pro Elite remain Australia’s favourite and most trusted brake controller.

The Tow-Pro Elite provides users with the ability to swap between Proportional mode (inertia sensing) for highway driving conditions and User-Controlled mode, popular for off-road driving.

This is the 3rd generation of REDARC’s Tow-Pro brake controller with the original released in June 2014 and the acclaimed Tow-Pro Elite released in September 2015.

Smooth braking capability

 Continual software upgrades have been included in the Tow-Pro Elite which result in smoother braking for motorists towing the widest range of caravans, trailers, boat trailers and horse floats.

 Compatible with all modern vehicles

When used with the recommended REDARC wiring kits, the Tow-Pro Elite ensures compatibility with all new vehicle technology and features Active Calibration. It works in 12V vehicles with Electric or Electric/Hydraulic trailer brakes and it works in 24V vehicles with electric brakes without the need for any additional adaptors.

For Electric/Hydraulic brakes behind 24V vehicles, it requires the EB24A adaptor. When installed as per instructions It ensures an ADR approved installation. It has also been approved by AL-KO for use with their ESC and by Dexter with their DSC systems.

Input (Operating) Voltage	9 – 32VDC
Input Fuse Rating	30A (Circuit Breaker)
Standby Current Draw	<10mA
Output System Voltage	12VDC
Output Current Rating (Cont.)	25A
Length (mm)	85
Width (mm)	100
Height (mm)	30
Weight (kg)	0.2
Warranty	2 Years

(Note – some european and post 2020 cars may require additional wiring at additional cost of $55 at time of installation)
