SHURFLO 4009 12V WATER PUMP CARAVAN 11 L P/M 45PSI 040860 JAYCO



Description

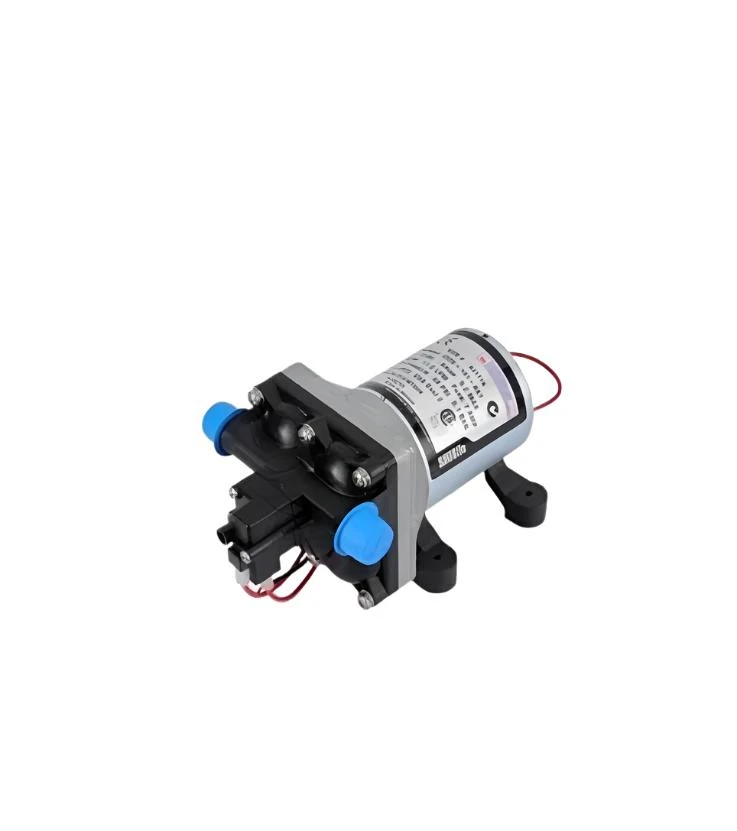

This SHURflo 4009 fresh water pump is the most common pump used in recreation vehicles made in Australia. Widely used by Jayco and many others. It features an internal by-pass, assuring long life and top performance in all plumbing systems. The Revolution Pump is built for high flow demand, low noise and no rapid cycling. This pump is super quiet, thermally protected and can run dry without damage. Mounts in any position.

This pump is a direct replacement for the Shurflo 2088 which has now been superseded by this item.

To ensure your Shurflo Pump has valid warranty, they must be installed with a filter.

Features

Ideal replacement for Series 2088 pumps

C-Tick approved

4 Chamber Diaphragm

Dry Prime up to 1.8m Vertical

Internal By-Pass will prevent rapid cycling (when used at very low rates, eg. thru water filters, they will rapidly cycle unless an accumulator is used, as will most 12v pumps.)

An accumulator is NOT required with this pump

1 year warranty.

Specifications

Model: 040860 Camec, 800-00012 Coast-to-Coast, 4009-101-A87, 043243, 2088

Brand: SHURflo

12 Volt

Flow Rate: 11 litres per minute

Auto-Switching: Yes

Maximum Amps: 5.2

Input/Output Connections: 1/2inch bsp male thread

Pressure Cut Off: 45psi (3.1bar)

Internal Bypass: Yes

Dry Prime Height: 1.8m

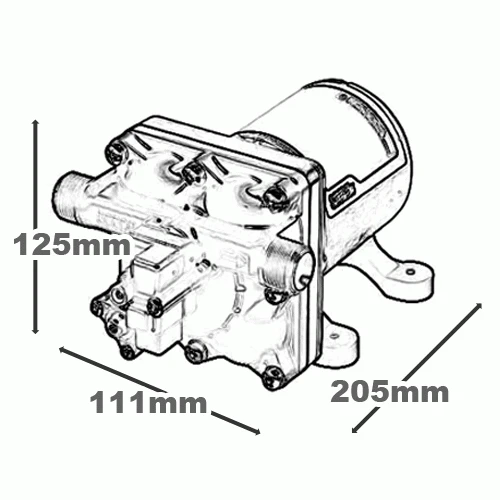

Dimensions (mm): 111(w) x 125(h) x 205(d)

Shipping Weight: 1.83 Kgs.

Shipping Dimensions: 11 cm x 13 cm x 21 cm.

These pumps have some water present as they have been fully tested by the manufacturer before being sent to Australia. The best connections for the 1/2 inch thread on these are the Shurflo fittings.

These are not supplied in a pretty retail box, and are as per what is supplied to the major caravan manufacturers in Australia. No box means cheaper for you, and less of your money in your bin. The importer will not warrant pumps that have not been used with a filter, or thread tape has been used, or tightened the thread mechanically, or been installed outside the body and suffer from dust ingression.
